很多客户在撰写UL1598C LED改装式替换件的标签和说明书时，总是会漏掉一些关键的内容，使得自己在认证过程中，反反复复修改多次。什么样的情况需要什么样的Marking和Warning？现总结相关的注意事项供大家参考。

UL1598C Standard for Light-Emitting Diode (LED) Retrofit Luminaire Conversion Kits

UL1598C是LED改装式替换件的安全标准，是针对以LED产品取代传统照明光源的安全要求。

UL产品类别编号IFAR，申请Classified标志。

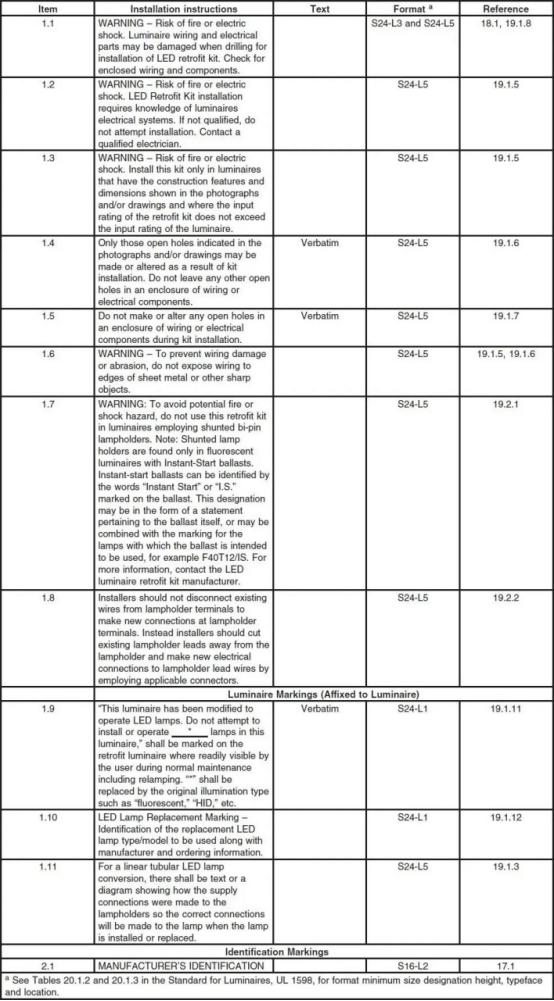

UL1598C Table 16.1

标签的要求

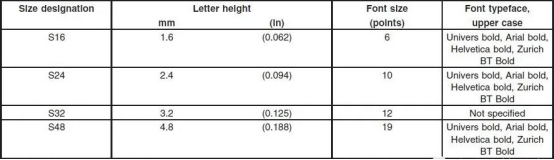

UL1598 Table 20.1.2

标签高度和字体尺寸的定义

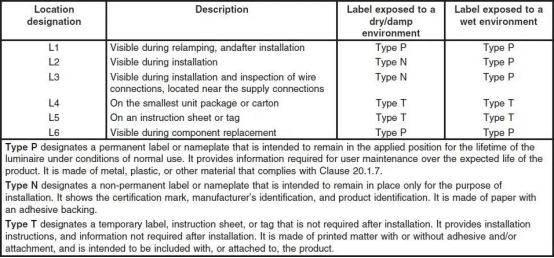

UL1598 Table 20.1.3

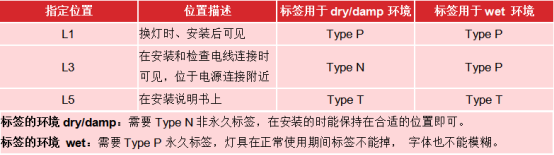

标签位置的定义

标签 Marking

标签位置：L1

贴在retrofit kit的本体上， 需要在安装时可见

字体要求：S16

01 产品持有者的名称或商标

Manufacturer's Identification

Including "retrofit Kit Manufacturer's Name, Trademark, Or Other Descriptive Marking"

02 产品名称

Model Designation Or Catalogue Number

03 生产时间

Date Code Of At Least The Month And Year Of Manufacture

04 生产工厂代码

Factory Identification(if More Than One Factory)

如果只有一家生产工厂，则不需要有代码

标签 Marking

标签位置：L1

贴在现场的灯具上，需要在换光源时可见

字体要求：S24

01 改装说明

如果改装后的灯具依然使用原有灯具的灯座，防止用户换回以前光源的说明内容，需逐字逐句体现在Marking中。

“This luminaire has been modified to operate LED lamps. Do not attempt to install or operate ___*___ lamps in this luminaire,” shall be marked on the retrofit luminaire where readily visible by the user during normal maintenance including relamping. “*” shall be replaced by the original illumination type such as “fluorescent,” “HID,” etc.

02 换光源标签

LED Lamp Replacement Marking – Identification of the replacement LED lamp type/model to be used along with manufacturer and ordering information.

03 电路接线指引

对于LED灯管的替换安装，应有文字或电路图说明如何与灯座进行电源连接，以便在安装或更换灯时可以正确安装。

For a linear tubular LED lamp conversion, there shall be text or a diagram showing how the supply connections were made to the lampholders so the correct connections will be made to the lamp when the lamp is installed or replaced.

标签 Marking

标签位置：L3

贴在现场的灯具上，需要在安装灯具检查线路时可见， 靠近灯具输入线

字体要求：S24

01 安装警示语

安装Retrofit Kit时，需要在灯具上打孔，应有如下的警示语：

WARNING – Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.

说明书 Instructions

标签位置：L5，在说明书中体现

字体要求：S24

01 说明书须包含以下内容

WARNING – Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.

02 说明书须包含以下内容

WARNING – Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.

03 说明书须包含以下内容

WARNING – To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.

04 说明书须包含以下内容

根据实际情况填写Retrofit kit的电压和频率：

Risk of fire or electric shock,The electrical rating of these products are___Vac,___Hz. The installer must determine whether they have___Vac, ___Hz the luminaire before installation.

05 灯具如需打孔的说明

安装时如需在灯具上打孔，须包含以下内容：

WARNING – Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.

06 灯具如需打孔的说明

安装时如需在灯具上打孔，须包含以下内容，并逐字逐句体现在说明书中：

Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit installation. Do not leave any other open holes in an enclosure of wiring or electrical components.

07 灯具不能打孔的说明

安装时如不能在灯具上打孔，须包含以下内容，并逐字逐句体现在说明书中：

Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.

08 警示语

替换式LED灯管， 需要一个灯座同时接市电的零火线时，例如单端供电的LED直管灯，说明书必须包含以下内容，也可以打在LED灯管上。

WARNING: To avoid potential fire or shock hazard, do not use this retrofit kit in luminaires employing shunted bi-pin lampholders. Note: Shunted lamp holders are found only in fluorescent luminaires with Instant-Start ballasts. Instant-start ballasts can be identified by the words “Instant Start” or “I.S.” marked on the ballast. This designation may be in the form of a statement pertaining to the ballast itself, or may be combined with the marking for the lamps with which the ballast is intended to be used, for example F40T12/IS. For more information, contact the LED luminaire retrofit kit manufacturer.

09 使用原荧光灯灯座的说明

使用原有的荧光灯的灯座时，须包含以下内容：

Installers should not disconnect existing wires from lampholder terminals to make new connections at lampholder terminals. Instead installers should cut existing lampholder leads away from the lampholder and make new electrical connections to lampholder lead wires by employing applicable connectors.

10 Wet Location的说明

适用于Wet Location灯具中的Retrofit Kits，可以有类似以下说明：

This retrofit kits suitable for using in wet locations luminaires specified as below.

11 Damp Location的说明

适用于Damp Location灯具中的Retrofit Kits，可以有类似以下说明：

This retrofit kits suitable for using in dry or damp locations luminaires.

12 输入线的温度说明

温升测试时，如果灯具输入线的温度超过60℃，要有以下类似说明：

The retrofit kits can install in the luminiare with MIN _75/90__ °C SUPPLY CONDUCTORS.
