标准解读-家用和类似用途电器的安全IEC/EN 60335系列标准

类别:最新法规 文章出处:沃特测试发布时间:2019-06-24 浏览人次:

(一)EN 60335-2-15:2016 /AMD11:2018液体加热器的特殊要求的标准更新

家用和类似用途电器的安全-液体加热器的特殊要求EN 60335-2-15:2016的修订AMD11:2018 已正式出版。正式生效日期DOP:2019-03-28;强制实施日期DOW:2021-09-28。EN 60335-2-15:2016/AMD11:2018 新增变化主要包括:


1、增加新产品壶式咖啡机(Pot coffee-maker) 的定义。

2、第7章标记和说明中对壶式咖啡机增加防过量加注的警告语句。

3、第22章结构中新增加条款22.Z101, 壶式咖啡机在正常使用时不应有咖啡泡沫溢出。


(二)IEC 60335-2-14:2016 /AMD1:2019 厨房机械的标准更新

IECEE 近日发布了家用和类似用途电器的安全-厨房机械的特殊要求IEC 60335-2-14:2016的修订AMD1:2019。IEC 60335-2-14:2016/AMD1:2019 新增变化主要包括:


1、第11章发热中的条款11.7.111删除最后一段。

2、第20章稳定性和机械危险中的条款20.2增加以下内容:

● 测试指不适用于:

● 研磨螺杆凸出高度小于4mm并且符合以下尺寸要求:

○ 螺杆外部圆周(见图104中的B)与研磨腔体内壁(见图104的C)的距离(见图104中的S)最大不超过1mm;

○ 进料口的内壁角到研磨腔体的距离小于2mm(见图104中的R2);

○ 螺杆无锐利边缘;

○ 进料口与研磨方向相对的内壁与螺杆中心点垂线的距离(见图104中的W)应不大于0.75倍的螺杆半径(见图104中的R1)。

3、条款20.106不适用符合条款20.2螺杆尺寸要求的结构。

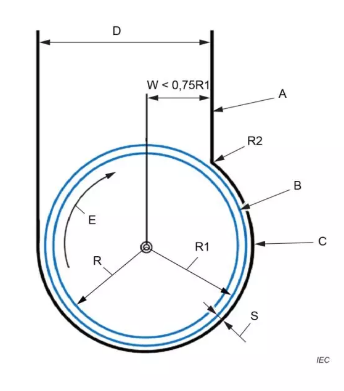

Key :

A   wall of feed opening in the direction of rotation

B   grinding screw outer circumference

C   grinding screw housing

D   feed screw opening

E   direction of rotation

W   distance from the grinding screw centre point to the inner wall of the feed opening at the direction of rotation

R   radius of the grinding screw excluding its threads

R1   redius of grinding screw outer circumference

S   distance between the grinding screw outer circumference (top of projection)and the inner wall of the grinding screw housing

R2   radius corner between the wall of the feed opening and the screw housing

Figure 104-Grinding screw with projections
